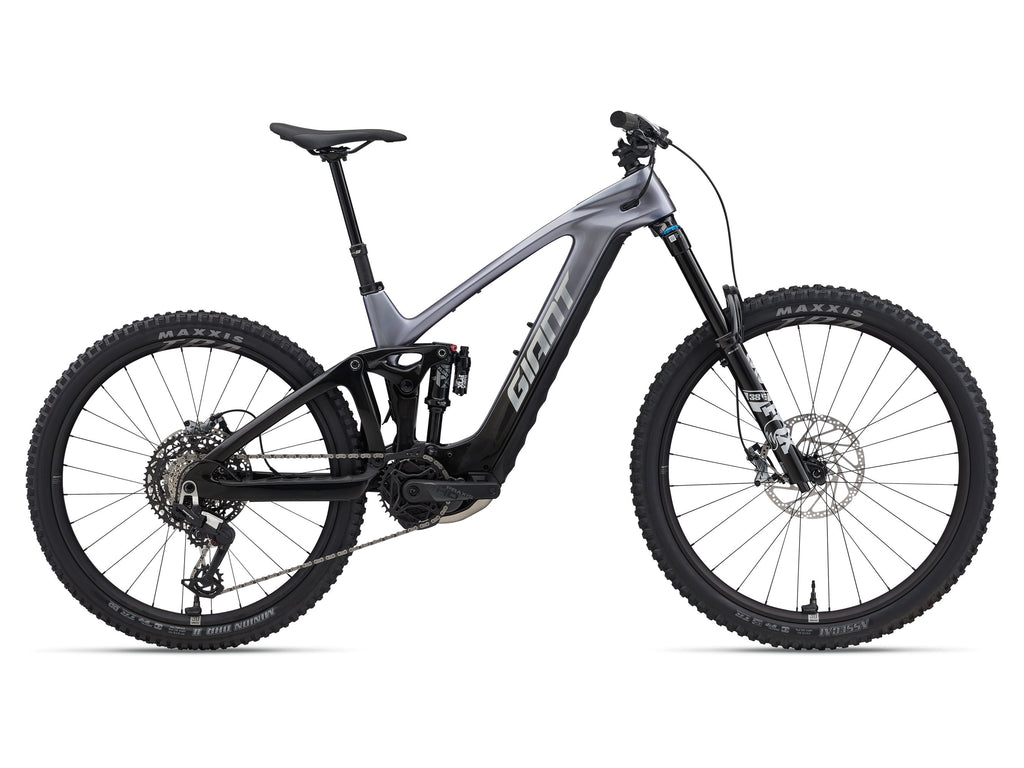

Everything about the new Reign Advanced E+ is designed to make it the best descending E-MTB ever. From the bottomless feeling Maestro suspension with 170mm of rear travel (and a 180mm fork) to the punchy new SyncDrive Pro 3 motor and its lightweight, stiff and ultra-adjustable composite frame. We added a titanium skid plate, robust frame protection, and an innovative bash-guard with an elastomer damper—so you can send it with confidence on the most rugged, technical terrain.
Key Performance Factors
DOMINANT ON DESCENTS
Featuring a modified Maestro suspension system with a new integrated lower link and 170mm of rear travel paired with a 180mm fork, this is best descending E-bike ever from Giant. Maestro’s floating pivot design means it’s always active and efficient under pedalling. Its progressive leverage curve makes the rear shock is easy to compress at the top of the stroke and super-supportive near the end range, producing a plush, bottomless feel that uses every bit of its travel. The result is unmatched confidence and control for big hits, steep drops and technical rock gardens.
LIGHTWEIGHT YET POWERFUL
Upgrading from a 36-volt to 48-volt system results in better performance with reduced heat and energy loss. With 90Nm of torque and 800 watts of peak power, the new SyncDrive Pro 3 motor lets you sustain a high torque level, even at higher pedalling cadences—so you feel powerful, consistent support in any riding situation The added power combined with a lighter composite frame and overall weight of just 22.3kg (size medium) means the Reign E+ Advanced packs a punch when you need it most. And the 48-volt system also produces less stress on the EnergyPak 560 battery, which has a nearly endless lifespan of up to 2300 charge cycles.
PREMIUM PROTECTION
Designed to shred hard and take a beating, the Reign Advanced E+ features a tough, dual-density battery cover that doubles as a full-length protector on the underside of the down tube—perfect for chairlifts, trailers or pickup truck shuttles. A new integrated skid plate protects the motor with corrosion resistant titanium that’s twice as strong as aluminium. And with less friction, the skid plate also helps keep you from getting hung up on rocks, roots, or other obstacles. Finally, a unique MRP active bash-guard, with an elastomer damper and suspended design, gives you unmatched chain and chainring protection.
- Motor: Giant SyncDrive Pro 3, 48v, 90Nm, 800W max power, powered by Yamaha
- Controller: RideControl Ergo 4, grip integrated
- Display: RideControl GO LUX, frame integrated LED display ANT+
- Battery: EnergyPak Smart 560Wh EnergyPak Plus 280 range extender compatible
- Charger: Giant EnergyPak smart charger 4A, 48V
- Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
- Connectivity: Tyre Pressure Management System (TPMS) included in RideControl display
- Sizes: S, M, L, XL
- Colours: Mercury/Carbon Smoke
- Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 170mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
- Fork: Fox 38 Performance Elite E-Tuned, 180mm travel, 44mm offset, GRIP X2 damper, Boost Kabolt-X 110x15mm
- Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2 position lever, custom tuned
- Handlebar: Giant Contact Enduro, 35mm rise
- Grips: Giant Tactal Pro-E, single lock-on
- Stem: Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:40mm
- Seatpost: Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
- Saddle: Giant Romero
- Pedals: Platform
- Shifters: SRAM Eagle 90, 1x12
- Rear Derailleur: SRAM Eagle 90 T-Type
- Brakes: TRP DH-R EVO DH, hydraulic, TRP rotors [F]220mm, [R]220mm
- Brake Levers: TRP DH-R EVO
- Cassette: SRAM XS-1270, T-Type 10x52T
- Chain: SRAM Eagle 70 T-Type
- Crankset: Praxis e-HD crank arms SRAM Eagle T-Type steel direct mount, 36T chain ring S:160mm, M: 160mm, L:160mm, XL:160mm
- Bottom Bracket: N/A
- Rims: Giant E-TRA Hookless Tubeless ready Alloy 29" [F] 27.5" [R] 30mm inner width
- Hubs: Giant E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (6 Pawl 72T) Thru-axle [R]
- Spokes: Sapim Laser, e-bike optimised
- Tires: Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R]
- Extras: Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), MRP E-Amg, custom bashguard with integrated damping design
- Lighting: Optional: Giant Recon series e-bike lights available and direct connectable
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
