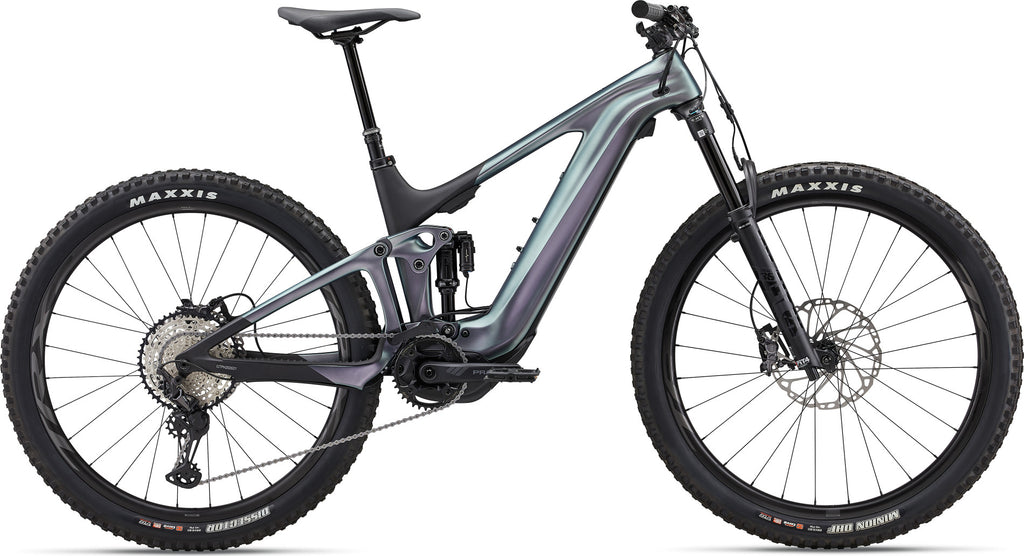

A NEW BREED OF TRAIL BIKE THAT BLENDS POWER, PERFORMANCE AND FLAT-OUT FUN. WITH ITS LIGHTWEIGHT COMPOSITE FRAME, PLUSH SUSPENSION AND NEW MOTOR TECHNOLOGY, YOU’LL NEVER WANT THE RIDE TO END.
KEY PERFORMANCE FACTORS
Powerful and responsive
SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Clean cockpit
RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
-
Motor: SyncDrive Pro, 85Nm, powered by Yamaha
-
Controller: RideControl Ergo 3, grip integrated
-
Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
-
Battery: EnergyPak Smart 800, EnergyPak Plus range extender compatible
-
Sizes: S, M, L, XL
-
Colours: Airglow
-
Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
-
Fork: Fox 36 Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated
-
Shock: Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
-
Handlebar: Giant Contact SL 35
-
Grips: Giant Tactal Pro-E, single lock-on
-
Stem: Giant Contact SL 35
-
Seatpost: Tranz-X Rad+ travel adjust dropper, dropper
-
Saddle: Giant Romero, Neutral
-
Pedals: Flat pedals
-
Shifters: Shimano Deore XT
-
Front Derailleur: MRP HD2 co-moulded chain guide
-
Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+
-
Brakes: Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm
-
Brake Levers: Shimano Deore XT, I-spec EV
-
Cassette: Shimano CS-M7100, 10-51T, 12-speed
-
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
-
Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
-
Bottom Bracket: N/A
-
Rims: e-TRX Hookless Clincher, 29", 30mm inner width
-
Hubs: e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle
-
Tires: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
-
Extras: Tubeless kit (liquid, valves, levers)
-
Lighting: Optional:- Giant Recon series e-bike lights available and direct connectable
-
Lock: Torx 25 Battery Lock with built-in Torque limiter
-
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
