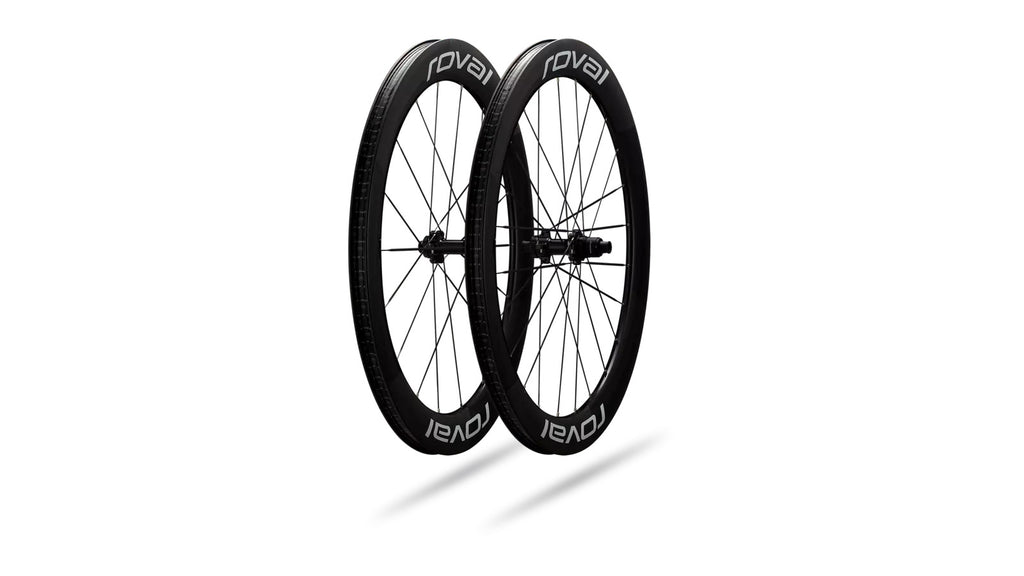

Meet the Roval Rapide CLX Sprint—built to get to the finish line first. Since 90% of aero benefit comes from the front wheel, we went all-in with a 63mm deep front rim to slice through the wind, and a lightweight 58mm rear with carbon spokes for blistering acceleration when it counts. Charge full gas with confidence: FlatStop bead hooks demand 39% more force to flat, delivering race-day reliability that lasts to the line. Roval is shifting the aero paradigm—depth redefined for absolute speed.
Front Rim
Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)
Front Rim Dimensions
Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm
Rear Rim
Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)
Rear Rim Dimensions
Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm
Rim Construction
Carbon Clincher Hooked
Wheel Size / ETRTO
622 × 21 (700c)
Hole Count
Front: 18H, Rear: 24H
Tubeless Compatibility
Yes
Insert Compatibility
Yes
Brake Compatibility
Disc (Centerlock)
Valve Stem Length
Roval Tubeless Vlave, Alloy 80mm
Front Hub
Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Rear Hub
Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Hub Bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
Rear Freehub Body
DT Swiss Ratchet EXP (36T ): Sram XD-R
Front Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
Rear Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
Front Lacing Pattern
Two-Cross / Radial (2:1), Not Tucked
Rear Lacing Pattern
One-Cross / Three-Cross (2:1), Not Tucked
Nipples
Arris MK4 Spoke Nipple Alloy, 6 mm
Approved Tire Widths
24mm-38mm
Max Pressure
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Tire Type
Clincher Tubeless and Clincher Tube Type
Tubeless Tape Width
25mm
Design Tire
RapidAir TLR, 28mm
Front Weight
640g (with valves and tape)
Rear Weight
755g (with valves and tape)
Wheelset Weight
1395g (with valves and tape)
Extras
4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub (Steel Bearings) & end Caps (rear wheel only)
E-bike Approved
No
Certifications
ISO 5775-2, UCI Approved
Weight Limit
275 lbs. / 125 kg.
Assembly Method
Hand Built
Warranty
Limited Lifetime Warranty
